C11000 Electrolytic Tough Pitch (ETP) Copper Sheet & Plate. We carry a very large range of sizes and will cut the material to length. C11000 Electrolytic Tough Pitch (ETP) Copper is produced by the direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen-free metal during processing. The method of producing OFHC copper ensures extra high grade of metal with a copper content of 99.99%. With so small a content of extraneous elements, the inherent properties of elemental copper are brought forth to a high degree

Product Description

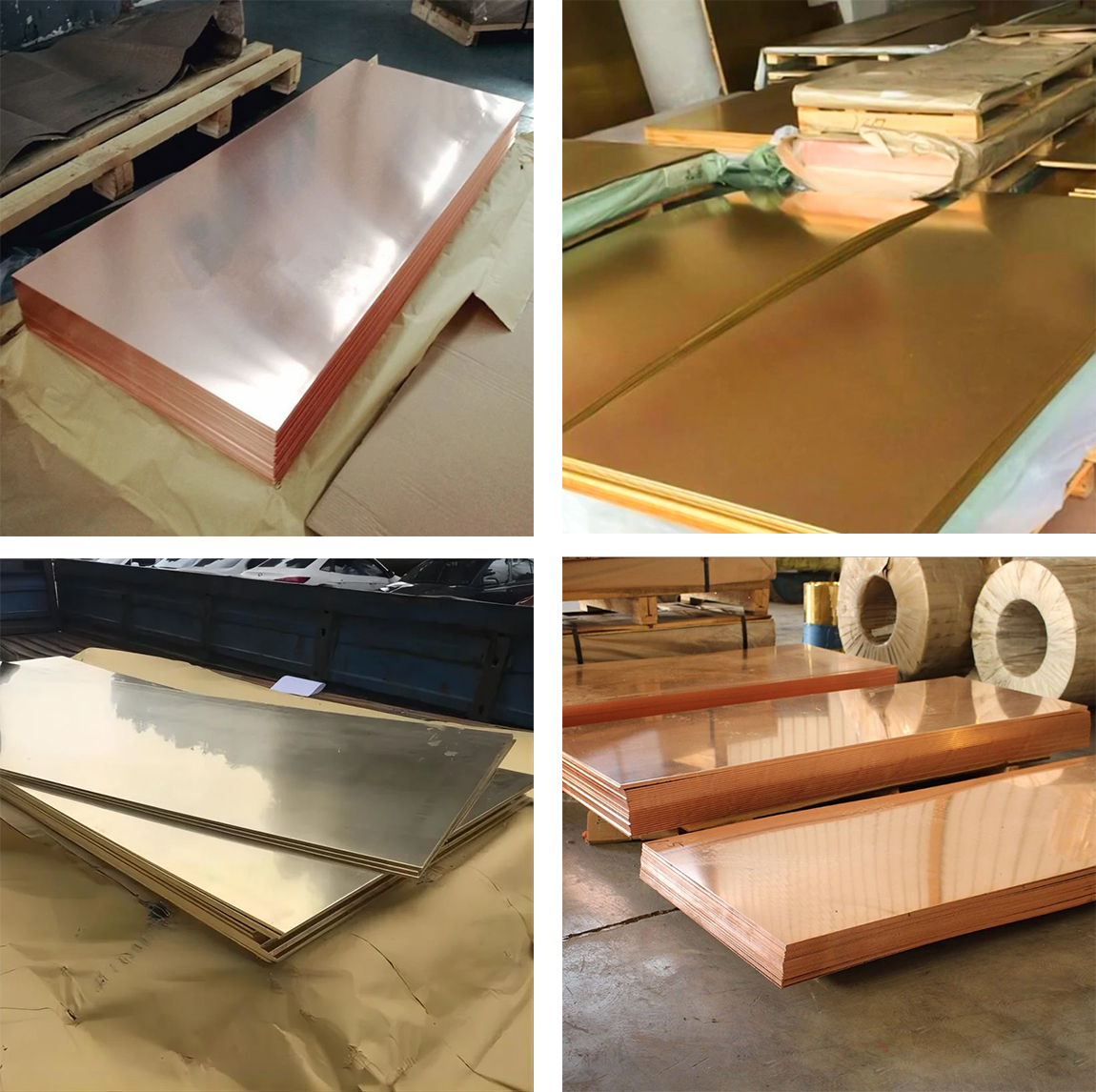

C11000 ETP Sheet / Plate

C11000 Electrolytic Tough Pitch (ETP) Copper Sheet & Plate. We carry a very large range of sizes and will cut the material to length. C11000 Electrolytic Tough Pitch (ETP) Copper is produced by the direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen-free metal during processing. The method of producing OFHC copper ensures extra high grade of metal with a copper content of 99.99%. With so small a content of extraneous elements, the inherent properties of elemental copper are brought forth to a high degree.

This is the most common copper. It is universal for electrical applications. ETP has a minimum conductivity rating of 100% IACS and is required to be 99.9% pure. It has 0.02% to 0.04% oxygen content (typical). Most ETP sold today will meet or exceed the 101% IACS specification. As with OF copper, silver (Ag) content is counted as copper (Cu) for purity purposes.

C11000 SHEET TYPICAL USES

Some of the typical areas that C11000 is used in, is as follows:

Building Fronts, Gutters, Skylight Frames, Roofing, Flashing, Downspouts, Spouting

Pressure Vessels, Chemical Process Equipment, Chlorine Cells, Chimney Cap Screens, Heat Exchangers, Printing Rolls, Anodes, Rotating Bands, Kettles, Pans, Vats, Road Bed Expansion Plates

C11000 SHEET CHEMICAL COMPOSITION

(%max., unless shown as range or min.)

C11000 SHEET MECHANICAL PROPERTIES

(measured at room temperature, 68 F (20 C)

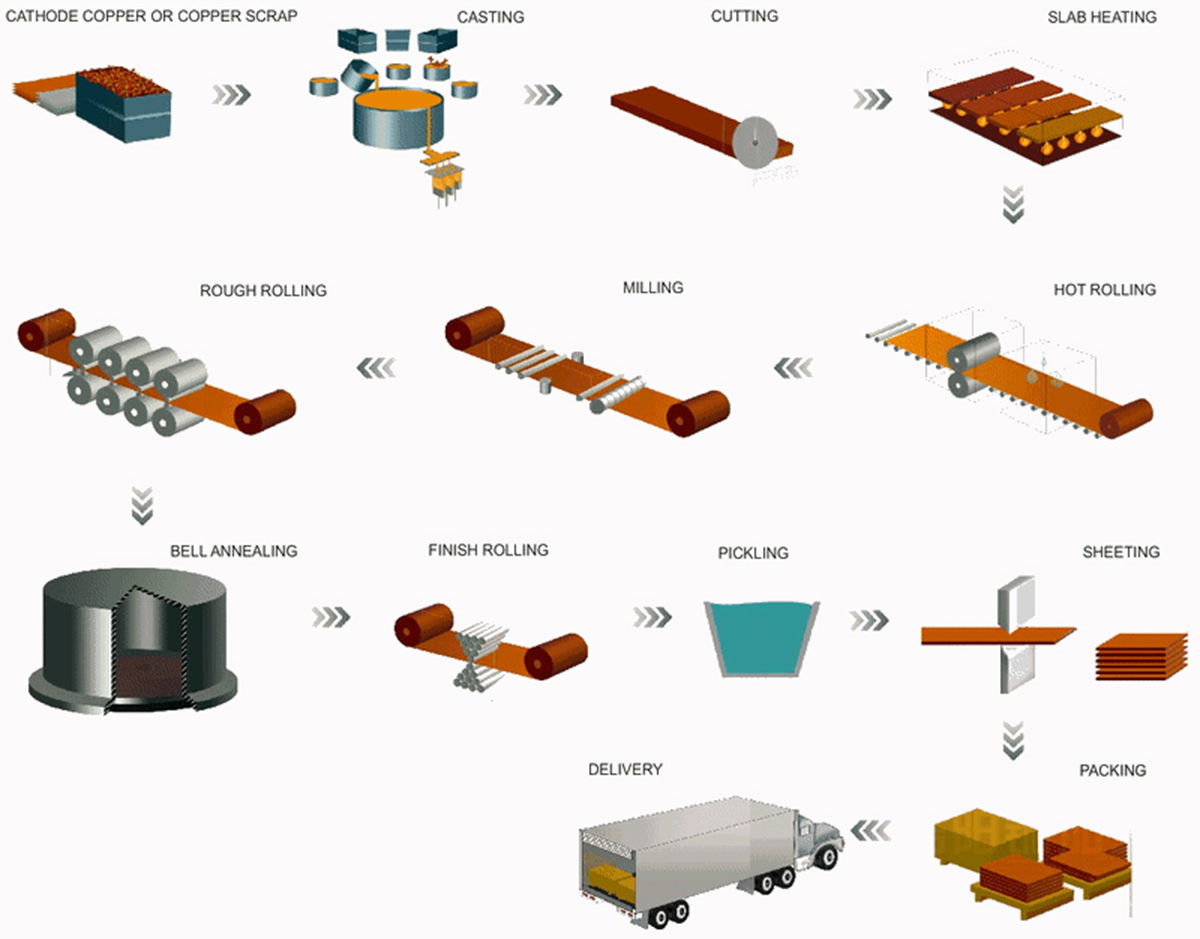

Production Process
