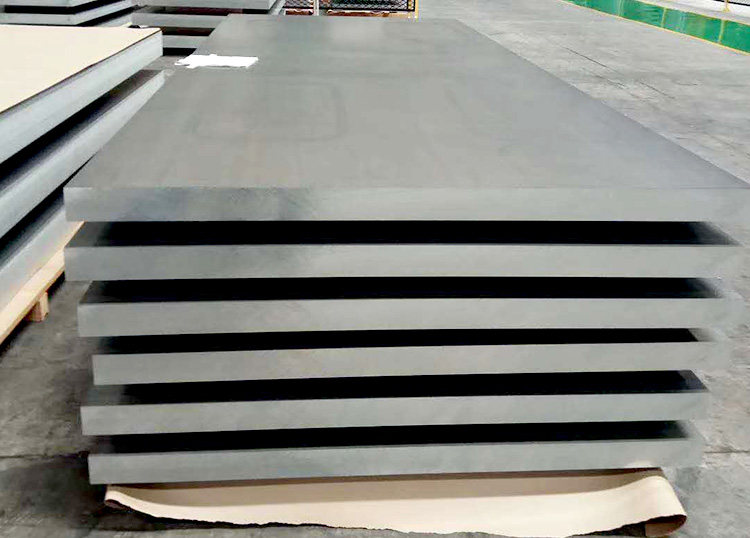

Aluminium 3004 Plate
3004 aluminium sheet also belongs to the Al-Mn rustproof alloy series. Its strength is not high (slightly higher than that of industrial pure aluminium), but higher than that of 3003 aluminium sheet. Similarly, 3004 aluminium sheet is a non-heat-treated alloy, and its mechanical properties are improved by cold processing. Also, 3004 aluminium sheet properties are characterized by good formability, dissolves resistance, corrosion resistance, etc., are often used to need good formability, high corrosion resistance, good weldability parts processing, or both require this performance and need to have more than 1000 series oxidation surface treatment effect of 3004 aluminium sheet is amazing, which is a good choice for colour coated aluminium substrate.
With decades of aluminium sheet production experience, CHAL is able to produce and supply high-quality 3004 aluminium sheet of different sizes and tempers.
ZHONGZHILIAN is a leading manufacturer and supplier of 3004 Aluminium Plate in various dimensions and types.
With decades of aluminium sheet production experience, ZHONGZHILIAN is able to produce and supply high-quality 3004 aluminium sheet of different sizes and tempers.n parts, skins, bulkheads, ribs, spar, rivets and other working parts below 150 ℃ on aircraft.
Please contact us for various products such as the Aluminium 3004 Perforated Sheet and the prices.
| Alloy | 3004 |
| Material temper | F, H112, O, H111, H12, H22, H32, H14, H24, H34, H16, H26, H18, H28, H38 |
| Thickness (mm) | 0.2-400 |
| Width (mm) | 100-2650 |
| Length (mm) | Customized |
| Typical product | Molds, High strength parts, Thick plate, etc . |
| Packing: Export wooden pallets, craft paper, anti-blushing agent. |
| The inner size of container is below: |
| 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS |
| 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS |
| 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS |
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al |
| Content (max) | 0.30 | 0.70 | 0.25 | 1.0-1.5 | 0.8-1.3 | – | 0.25 | 0.23 | 0.15 | 95.6-98.2 |
3004 aluminum alloy is an alloy in the wrought aluminum-manganese family (3000 or 3xxx series). It is similar to the 3003 alloys, except for the addition of approximately 1% magnesium. It can be cold worked (but unlike some other types of aluminium alloys, heat-treated) to produce tempers with a higher strength but a lower ductility. Like most other aluminium-manganese alloys, 3003 is a general-purpose alloy with moderate strength, good workability, and good corrosion resistance.
High Plasticity. 3004 aluminium sheet has high plasticity in annealing state, good plasticity in semi-cold hardening and low plasticity in cold hardening.
Finish Well. It can adapt to the maximum speed that most machine tools can achieve so as to milling, boring, planning and other mechanical processing. In addition, 3004 aluminum sheet has good weldability but poor machinability.
Slightly Higher Intensity. With the addition of the alloy component Mn, while maintaining the excellent workability and corrosion resistance of pure aluminium, the strength of the 3004 aluminium sheet is slightly increased, higher than that of the 3003 aluminum sheet, and 10% higher than that of the 1100 series.
Good Anodic Oxidation. The surface of the 3004 aluminum sheet after anodized has enhanced corrosion resistance and can also present colourful colours.
