Chemical Composition (%) of 321H Stainless Steel Coil
Carbon Silicon Sulfur Phosphorus Chromium Titanium Manganese Nickel Nitrogen
0.04-0.14 0.75 0.03 0.045 17.0-19.0 4 x (C + N) min.-0.70 max. 2.00 9.0-12.0 0.10
Mechanical Properties of 321H Stainless Steel Coil
Yield Strengtd
0.2% Offset
Ultimate Tensile
Strength
Elongation
in 2 in.
Hardness
psi (min.) (MPa) psi (min.) (MPa) % (min.) (max.)
30,000 205 75,000 515 40 217 Brinell
Physical Properties of 321H Stainless Steel Coil
Density lb/inᶟ 0.286
Density g/cmᶟ 7.920
Melting Range 2550-2635°F/1398 – 1446 °C
Thermal Conductivity at 212°F (100°C) 9.3 BTU/hr/ft²/ft/°F
Thermal Conductivity at 212°F (100°C) 16.0 W/m-°K
Electrical Resistivity 72 Microhm-cm at 20°C

Alloy 321 (UNS S32100) is titanium stabilized austenitic stainless steel coil with good general corrosion resistance. It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 800 - 1500°F (427 - 816°C). The alloy resists oxidation to 1500°F (816°C) and has higher creep and stress rupture properties than alloys 304 and 304L. It also possesses good low temperature toughness.

Alloy 321H (UNS S 32109) stainless steel plate is the higher carbon (0.04 - 0.10) version of the alloy. It was developed for enhanced creep resistance and for higher strength at temperatures above 1000oF (537°C). In most instances, the carbon content of the plate enables dual certification.

Alloy 321 stainless steel plate cannot be hardened by heat treatment, only by cold working. It can be easily welded and processed by standard shop fabrication practices.

If you are interested in other Stainless Steel Coil, please click 302, 303, 304, 304L, 304H, 309, 309S, 310, 310S, 310H, 316, 316L, 317/317L, 317LMN, 321, 321H, 330, 347, 347H, 904L, 403, 405, 409, 410, 410S, 410/HT, 416, 416HT, 420, 422, 430, 440C, Duplex 2205, Duplex 2304, Duplex 2507.




Get In touch with
About

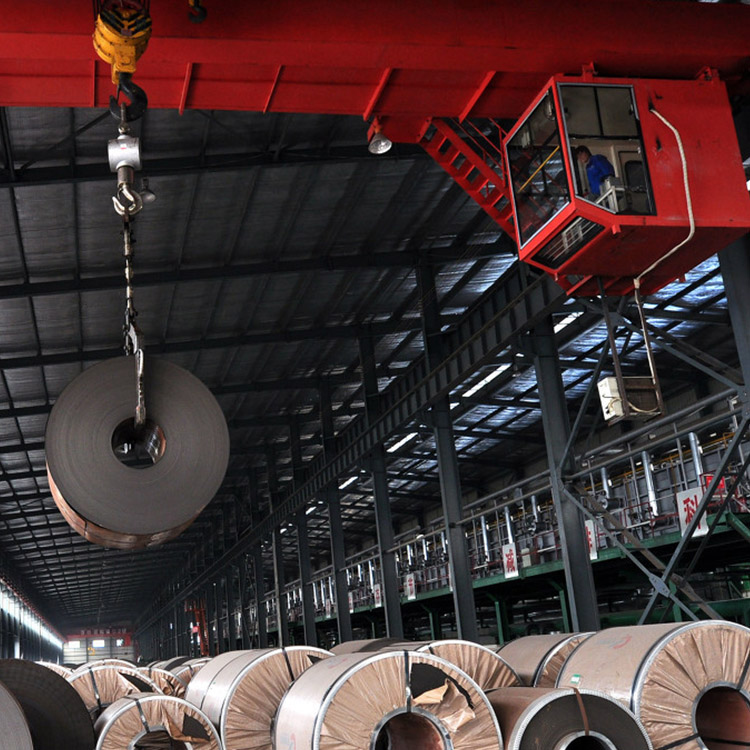

Jiangsu Zhongzhilian Steel Industry Co., Ltd., established in 2005,is a experienced manufacturer of steel products. It is located in Wuxi, one of the biggest stainless steel bases in China. The monthly production quantity is at least 10,000 Mt.Our factory covers an area of  50,000 square meters. There are five finishing rolling production lines and two hot rolling production lines as well as advanced computer-controlled automation systems. The whole set of machines and equipment are imported from Japan and Germany which guarantee the stable quality of our products. Moreover, to meet the increasingly high standard of the market, we keep introducing ...
